How to Upgrade Your Laptop to WiFi 7 (2026)

Upgrading your laptop to WiFi 7 requires swapping your internal M.2 wireless card for a newer module like the Intel BE200 . This upgrade enables Multi-Link Operation (MLO) for significantly higher throughput and lower latency on compatible 6GHz networks. The physical swap takes about 15 minutes; the main hurdles are verifying your laptop is upgradeable and selecting a card with good Linux driver support.

Is Your Laptop Upgradeable? Checking Before You Buy

Not all laptops have a user-accessible M.2 wireless card. Some manufacturers solder the WiFi chip directly to the motherboard — common in ultra-thin designs and many post-2020 premium laptops. Others include an M.2 slot but bury it under thermal shielding or RAM sticks that require full disassembly to reach.

Step 1: Identify your current card. On Linux: lspci | grep -i network or lspci | grep -i wireless. On Windows: Device Manager > Network Adapters. Note the current card model and cross-reference it with your laptop’s service manual to confirm it’s on an M.2 slot.

Step 2: Check iFixit and community resources. iFixit’s teardown database has teardowns for hundreds of laptop models with notes on wireless card accessibility. The laptop’s official service manual (usually available from the manufacturer’s support site) explicitly states whether the WLAN card is removable and which M.2 form factor it uses.

Step 3: Confirm the M.2 form factor. Two sizes are used in laptops:

• M.2 2230 (22mm × 30mm): common in recent thinner designs, used by Framework, newer ThinkPads, Dell XPS
• M.2 2242 (22mm × 42mm): less common but present in some older and larger designs

The Intel BE200 and most WiFi 7 cards are available in M.2 2230. Confirm which size your slot accepts before ordering.

The Whitelist Problem

This is the most frustrating obstacle for many would-be upgraders. Lenovo ThinkPads, many HP EliteBooks, and some other business laptops include a BIOS whitelist that only allows pre-approved wireless card models. Attempting to boot with a non-whitelisted card results in an error: “1802: Unauthorized network card is plugged in.”

The situation in 2026:

• Framework laptops: no whitelist, any M.2 WiFi card works
• Dell XPS/Latitude: no whitelist on most models
• Lenovo ThinkPad (business tier): whitelist on older models; newer (2022+) models have removed it for most regions
• HP EliteBook: whitelist common on corporate models
• Gaming laptops (ASUS, MSI, Acer): generally no whitelist

If your laptop has a whitelist, solutions include: finding a BIOS mod that removes the whitelist check (well-documented for older ThinkPads on community forums), checking if a BIOS update from the manufacturer has removed the restriction, or accepting the limitation and using an external USB WiFi adapter instead.

Multi-Link Operation (MLO) Reality Check

WiFi 7’s headline feature is Multi-Link Operation — the ability for a device to transmit and receive simultaneously across multiple frequency bands. A WiFi 7 device with MLO can use 2.4GHz and 5GHz at the same time, or 5GHz and 6GHz, aggregating bandwidth or using one band as a reliability backup for the other.

What MLO actually does for different use cases:

For VR and AR streaming, MLO’s reduction in latency variance (jitter) is the most meaningful benefit. Traditional WiFi can only be on one channel at a time, so a momentary channel congestion event creates a burst of latency. MLO spreads traffic across two links simultaneously — if one link degrades, the other maintains continuity. Measured jitter drops from ~20ms average to ~5ms in MLO-capable setups.

For video calls and remote work, the improvement is measurable but less dramatic — fewer dropped frames and more stable bandwidth during peak usage periods in congested WiFi environments.

For file transfers, the theoretical bandwidth doubling is rarely achieved in practice. Real throughput depends on your router’s backhaul, the storage speed of both endpoints, and network congestion — most users with a WiFi 6E setup already saturate their internet connection, and WiFi 7’s additional theoretical bandwidth doesn’t flow through a typical home fiber connection.

The critical requirement: MLO only works when both the client card and the router support it. If your router is WiFi 6E or older, you’re getting a WiFi 7 card for improved 6GHz performance and future-proofing — not MLO specifically. A WiFi 7 router is the other half of the equation.

Choosing the Right WiFi 7 Card

Linux driver support is the primary selection criterion for any wireless card upgrade. A card with poor Linux support will work unreliably, have features that are unsupported (like MLO or 6GHz band access), and require annoying workarounds. The three viable options in 2026:

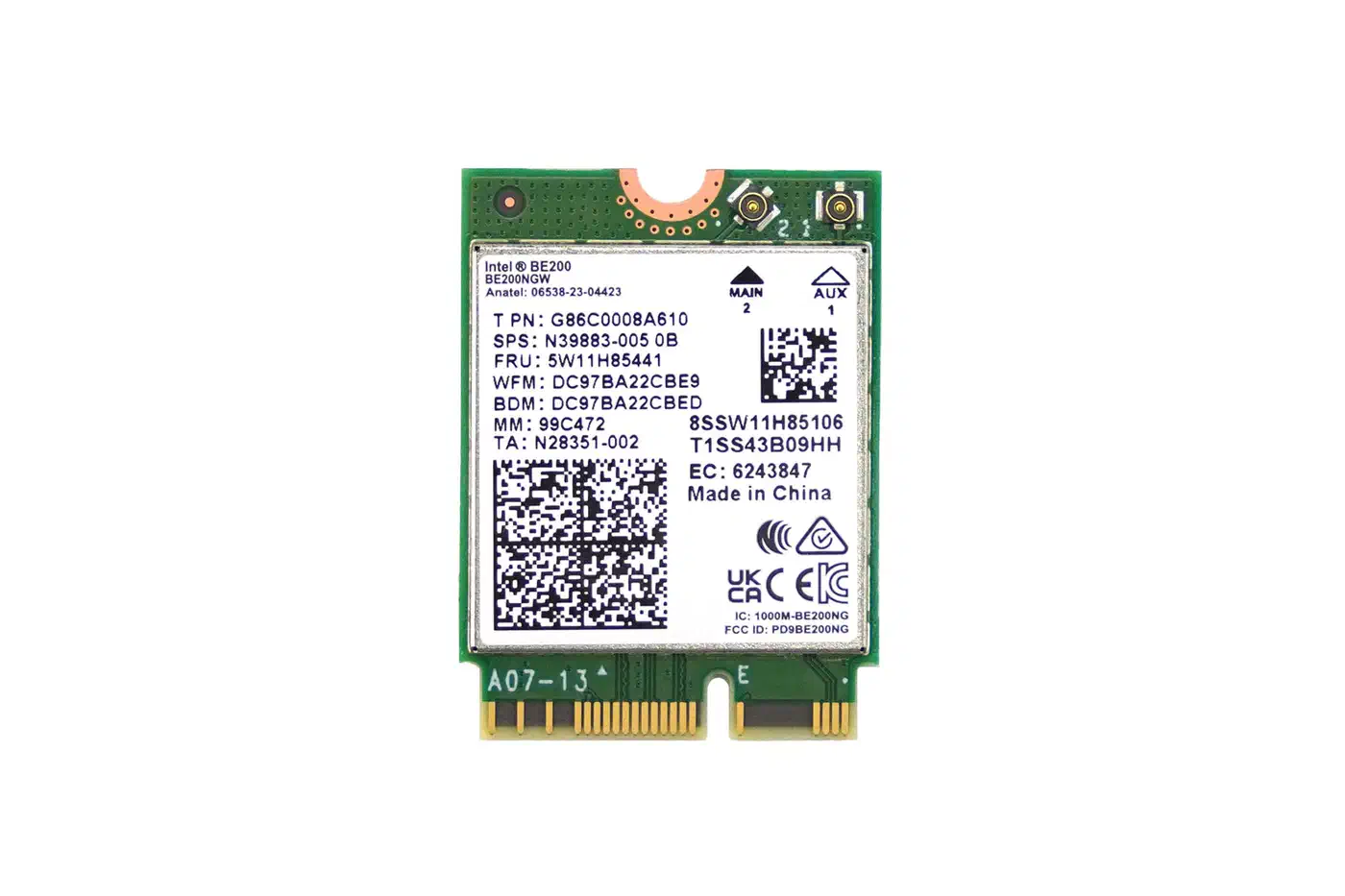

Intel BE200 — Recommended for Linux

The Intel BE200 is the safest Linux choice. Intel has a long history of upstreaming drivers to the mainline Linux kernel, and the BE200’s iwlwifi driver has been in the mainline kernel since version 6.7. Driver support is stable, well-tested, and actively maintained.

Features: supports WiFi 7 (802.11be), 2.4/5/6GHz tri-band, MLO, up to 5.8 Gbps theoretical, Bluetooth 5.4. Available in both M.2 2230 and M.2 2242. Price: $25–35 in 2026.

MediaTek MT7925 — Strong Alternative

MediaTek has significantly improved their Linux driver development cadence in recent years. The MT7925’s mt7921 driver family is in the mainline kernel and receives regular updates. The MT7925 offers comparable performance to the BE200 and is often found in laptops from ASUS and Lenovo as their factory-installed WiFi 7 option.

The advantage over Intel: the MT7925 tends to have better performance on certain 6GHz channel configurations. The disadvantage: the driver ecosystem is less mature than Intel’s — occasional regression bugs appear after kernel updates that take longer to fix.

Qualcomm FastConnect 7800 — Performance Leader, Linux Caution

The Qualcomm FastConnect 7800 has the best real-world throughput in controlled benchmarks. In Windows, it’s the premium option. In Linux, driver support via ath12k is functional but less complete — MLO support and some 6GHz features are still stabilizing in 2026. Suitable for users on Fedora or Arch who track the latest kernel closely and don’t mind occasional driver rough edges.

What to Avoid

No-name WiFi 7 chips with no mainline Linux driver support. These typically use Realtek chipsets with vendor kernel modules that must be compiled against each kernel update — a maintenance burden that breaks regularly. If a card’s Linux driver requires DKMS and isn’t in the mainline kernel tree, it’s going to cause problems.

WiFi 8 (802.11bn) Consideration

WiFi 8 is in the IEEE 802.11bn standards process with 2027–2028 ratification targeted. Theoretical specs include 100 Gbps peak throughput, improved multi-user OFDMA, and better coexistence in congested RF environments.

Should you wait? No, unless you’re already on WiFi 6E (802.11ax) and your current performance is genuinely adequate. The timeline for WiFi 8 consumer products is 2028 at the earliest for mainstream availability — and the router ecosystem needs to catch up alongside the client devices. If you’re still on WiFi 5 or WiFi 6 (non-6E), upgrading to WiFi 7 now provides a meaningful improvement. If you’re already on WiFi 6E and satisfied, waiting makes sense. The “upgrade the card” part of WiFi 8 adoption will be easy — the more expensive router upgrade is the bigger commitment.

Installation Walkthrough

Tools needed: Phillips #0 or #00 screwdriver (verify your laptop’s screw type first), plastic spudger or guitar pick for prying plastic clips, anti-static wrist strap.

Step 1: Preparation. Power off completely (not sleep). Disconnect AC power. On many laptops, remove the battery or short the power button for 10 seconds after disconnecting power to discharge capacitors.

Step 2: Open the bottom panel. Remove all screws from the bottom panel. Screws under rubber feet are common — check with a flashlight. Use a spudger to carefully unclip the plastic retention clips around the perimeter without cracking them. Remove the bottom panel.

Step 3: Locate and remove the old card. The WiFi card is identifiable by its two antenna cables (thin black and white wires with small metal connectors on the ends). Remove the antenna cables by lifting straight up from the U.FL connectors — never pull sideways. Remove the single retention screw, then slide the card out at a 20-30 degree angle.

Step 4: Install the new card. Insert the new card at the same angle it came out, press down flat, replace the retention screw (hand-tight only — over-tightening cracks the PCB). Reconnect both antenna cables, pressing straight down until they click.

Step 5: Reassemble and verify on Linux:

# Verify the card is recognized
lspci | grep -i network

# Check that firmware loaded correctly
dmesg | grep -i iwlwifi  # for Intel BE200

# Verify band support
iw list | grep "Frequencies" -A 20 | grep 6

The 6GHz band entries in iw list confirm the card is operating correctly with full WiFi 7 capability.

Troubleshooting:

After a successful upgrade, connect to a 6GHz network and run a speed test. On a WiFi 7 router with a clear 6GHz signal, expect 800–1500 Mbps throughput from a meter away — roughly 3–5x the typical performance of a 5GHz WiFi 6 connection at similar distance.

Compatibility Matrix for Common Laptops

For non-upgradeable laptops, a USB WiFi 7 adapter is the alternative. The ASUS USB-AX56 (WiFi 6E) and emerging WiFi 7 USB adapters from TP-Link and Netgear provide 6GHz access without internal surgery — though USB bandwidth limits maximum throughput to around 1 Gbps regardless of the card’s theoretical maximum.
