How Do You Set Up Thread Border Routers for a Matter Smart Home?

You deploy at least two Thread border routers - using an Apple HomePod Mini, a Google Nest Hub (2nd gen), or a DIY OpenThread Border Router (OTBR) on a Raspberry Pi - and connect them to the same Thread network. This gives your Matter -compatible smart locks, sensors, and lights a reliable IPv6 path to your IP network, letting them talk to Home Assistant , Apple Home, and Google Home simultaneously through Matter’s multi-admin feature. Two border routers is the minimum for any production Thread network; if one goes down, the other keeps your mesh alive.

Below: how Thread and Matter relate to each other, which border router hardware to pick, a full OTBR setup on a Raspberry Pi, mesh optimization, and device commissioning.

Thread and Matter - How They Work Together

Thread and Matter are complementary but distinct, and people confuse them constantly in smart home forums. Thread is a low-power IPv6 mesh networking protocol built on IEEE 802.15.4 radio at 2.4 GHz. It replaces the networking layer that Zigbee uses, with one critical difference: Thread devices form a self-healing mesh where any router-capable device can relay traffic, and the network supports multiple border routers simultaneously. There is no single coordinator that becomes a point of failure.

Matter operates one layer up. It is an application-layer protocol that defines how devices communicate - on/off, brightness, temperature, lock/unlock. Matter can run over Thread, WiFi, or Ethernet. Thread is just one transport option, but it is the best one for battery-powered devices because of Thread’s low power consumption.

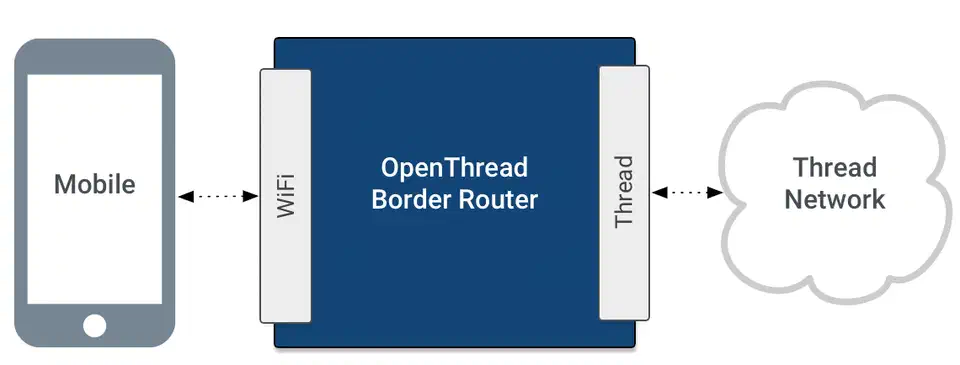

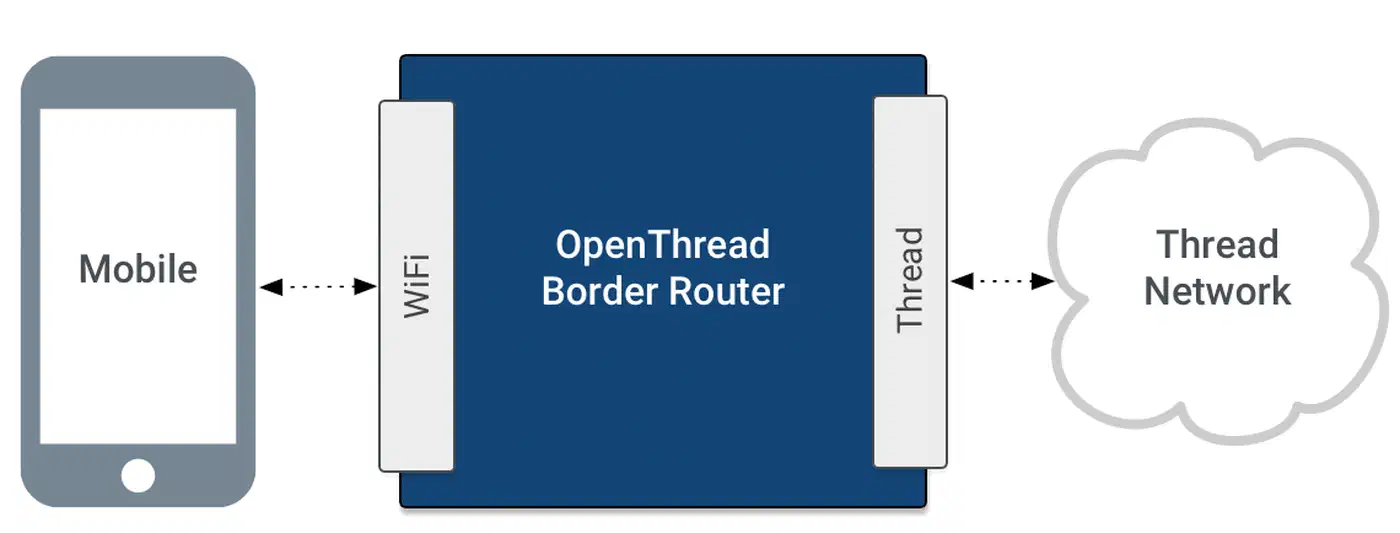

A Thread border router bridges the 802.15.4 radio mesh to your IP network (WiFi or Ethernet), giving Thread devices internet and LAN connectivity over IPv6. Without at least one border router, Thread devices are isolated on their own radio network with no way to reach your controller or the internet.

What changed recently: Matter 1.4 (released November 2024) introduced the Home Router and Access Point (HRAP) device type - devices that combine a WiFi access point and Thread border router, standardizing how Thread credentials are stored and shared. Matter 1.4 also added enhanced multi-admin (single user consent for multi-ecosystem pairing), energy management device types for solar, batteries, and heat pumps, and improved battery efficiency for sleeping devices. Thread 1.4 (fall 2024) standardized credential sharing so that newly installed border routers join existing networks instead of creating competing ones. As of January 2026, Thread 1.3 certifications are no longer accepted for new hardware - everything shipping now must be Thread 1.4 certified. The latest specification, Matter 1.4.2, requires Thread border routers to support at least 150 devices and WiFi access points to handle 100 simultaneous connections.

In practice, Thread 1.4 credential sharing means that when you add a new Thread border router from any ecosystem, it joins your existing Thread network instead of fragmenting your mesh into multiple isolated networks. This was a real pain point before Thread 1.4 - you could end up with Apple, Google, and Home Assistant each running their own separate Thread networks on different channels.

Thread Border Router Hardware Options Compared

Not all border routers are equal in reliability, ecosystem integration, or flexibility. Here is how the three main categories compare.

Apple devices - The HomePod Mini and Apple TV 4K (3rd gen) are built-in Thread border routers that automatically form and join Apple’s Thread network. They work well for Apple Home users and also expose devices to Home Assistant via Matter. In small to medium homes, a HomePod Mini in a central location and an Apple TV 4K near the TV area often provides a strong Thread backbone. The limitation is that credential sharing works automatically within the Apple ecosystem but needs Thread 1.4 for cross-ecosystem sharing.

Google devices - The Nest Hub (2nd gen), Nest Hub Max, Nest WiFi Pro, and the newer Google TV Streamer (4K) all include Thread border routers integrated with Google Home. Google was early to implement Thread 1.3+ credential sharing with Apple and Samsung ecosystems. The eero 7 (Amazon) is among the first Thread 1.4 certified border routers, and IKEA’s Dirigera hub also supports Thread 1.4.

OpenThread Border Router (OTBR) - A Raspberry Pi 4 or 5 paired with a Nordic nRF52840 USB dongle ($15-20) gives you full control. The OTBR integrates directly with Home Assistant’s Thread integration, runs open-source firmware, and is not locked to any ecosystem. Total cost is under $80. The tradeoff: you need to flash RCP firmware onto the dongle, run the OTBR software (Docker or native), and manage Thread network parameters yourself. There is no automatic credential sharing with Apple or Google - you must use Home Assistant as the Thread admin or manually join devices.

Recommendation: Start with one ecosystem border router (HomePod Mini or Nest Hub) for easy initial setup, then add an OTBR or a second ecosystem router for redundancy. Two border routers is the minimum for any Thread network you depend on. If you are also evaluating your WiFi backbone, see the guide on WiFi 7 mesh routers for smart homes — several of those systems now include built-in Thread border routers.

Setting Up an OpenThread Border Router on Raspberry Pi

If you run Home Assistant on a Pi or want full control over your Thread network, building an OTBR makes sense. Here is what the process looks like end to end.

Flash the nRF52840 Dongle with RCP Firmware

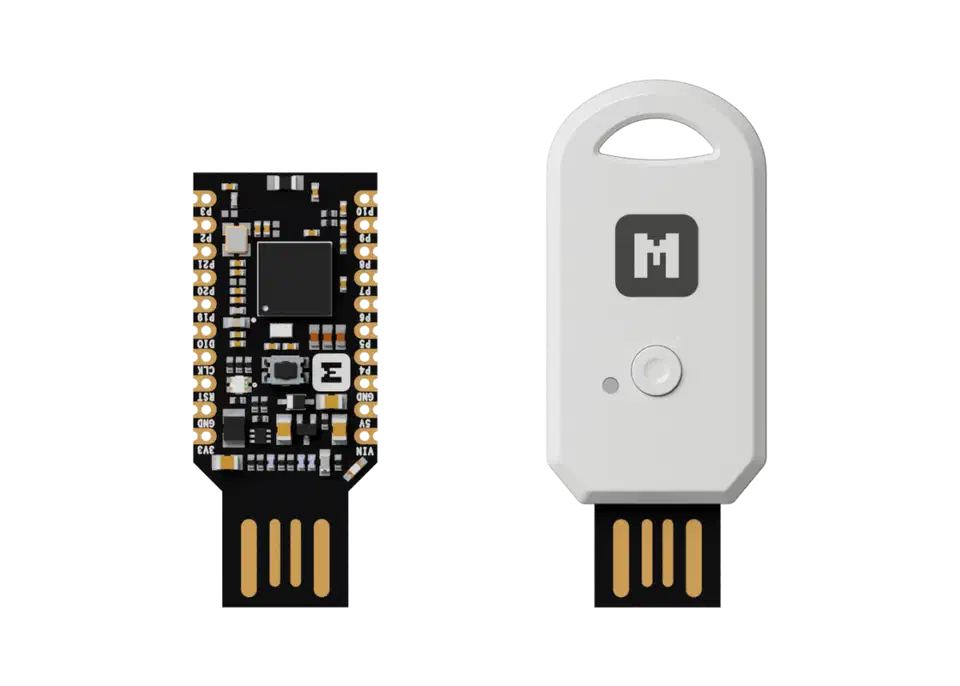

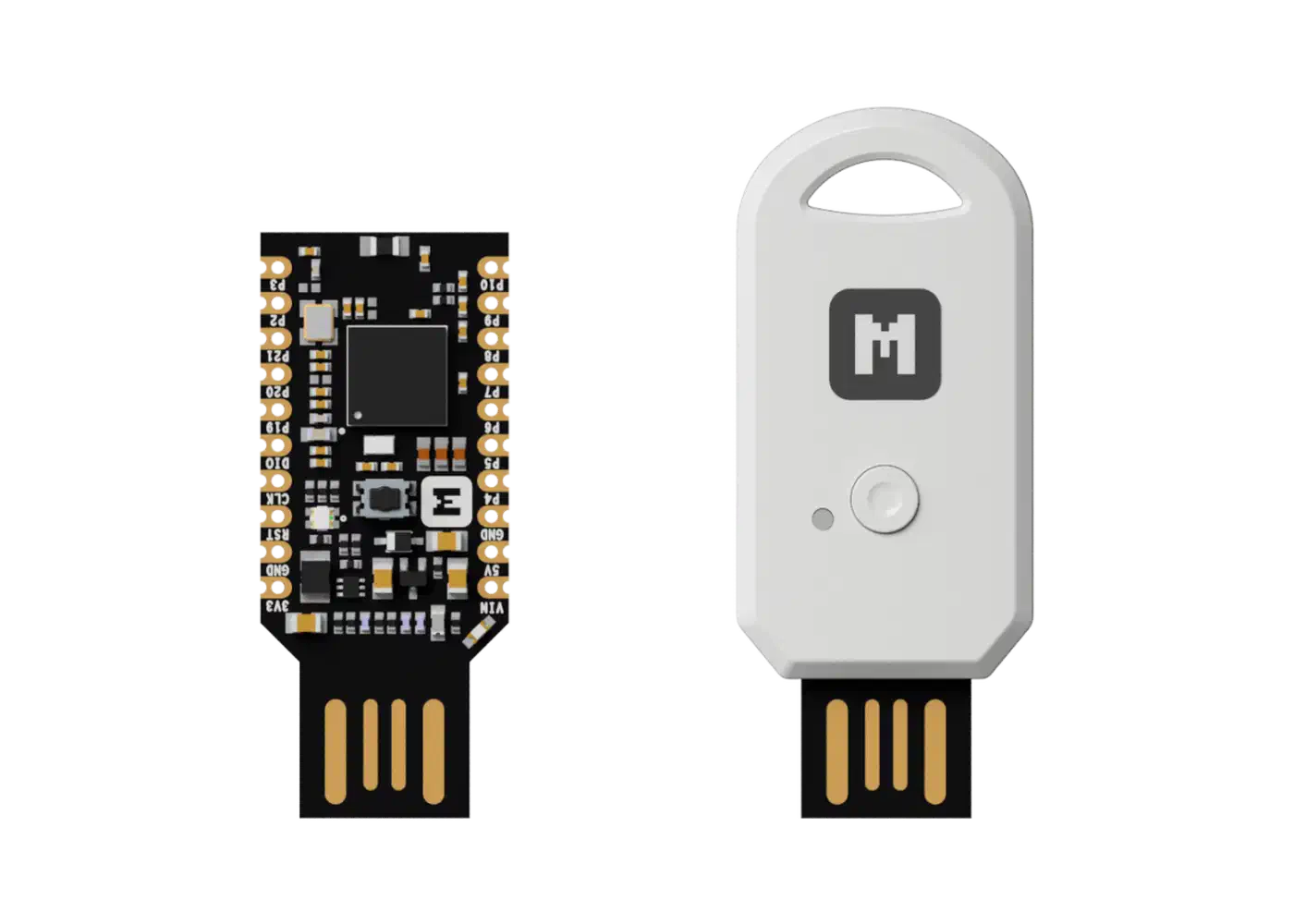

The nRF52840 dongle runs in Radio Co-Processor (RCP) mode, meaning it handles only the 802.15.4 radio while the Raspberry Pi runs the Thread networking stack. You need RCP firmware on the dongle.

Option A - Pre-built firmware: Download the pre-built RCP firmware from the Nabu Casa firmware repository or from the Home Assistant SkyConnect/Yellow pages. This is the simplest path if you are using Home Assistant.

Option B - Build from source: Clone the ot-nrf528xx repository and build the RCP image. The output is build/bin/ot-rcp. Convert to .hex format for flashing.

Flashing: Use nRF Connect for Desktop (Programmer tool) or the nrfjprog command-line tool. In nRF Connect, select the dongle from the device list, add the .hex file, select Erase & Write, and click Write. With nrfjprog, use the --sectorerase flag to preserve the bootloader.

Install OTBR via Docker

Docker is the fastest way to get the OTBR stack running. First, enable IPv6 forwarding on the host:

curl -sSL https://raw.githubusercontent.com/openthread/ot-br-posix/refs/heads/main/etc/docker/border-router/setup-host | bash

Create an environment file otbr-env.list:

OT_RCP_DEVICE=spinel+hdlc+uart:///dev/ttyACM0?uart-baudrate=1000000
OT_INFRA_IF=wlan0

Run the container:

docker run --name=otbr \
  --detach \
  --network=host \
  --cap-add=NET_ADMIN \
  --device=/dev/ttyACM0 \
  --device=/dev/net/tun \
  --volume=/var/lib/otbr:/data \
  --env-file=otbr-env.list \
  --restart=always \
  openthread/border-router

The --network=host flag is mandatory because the OTBR needs direct access to the host’s network interfaces for IPv6 routing.

Form a Thread Network

Access the OTBR web UI at http://<pi-ip>:8080. Click “Form Network” and configure:

• Network name: something descriptive like “HomeThread”
• PAN ID: leave the default or choose one
• Channel: pick channel 15, 20, or 25 to minimize overlap with common WiFi channel configurations (1, 6, 11). Use a 2.4 GHz WiFi analyzer app to check which channels are least congested in your area.

Verify Border Router Operation

Check the OTBR status from the command line:

docker exec -it otbr ot-ctl state

The output should say leader (if this is the first border router) or router. Then verify it advertises itself correctly:

docker exec -it otbr ot-ctl netdata show

You should see an IPv6 prefix entry indicating the OTBR is advertising border router service.

Connect to Home Assistant

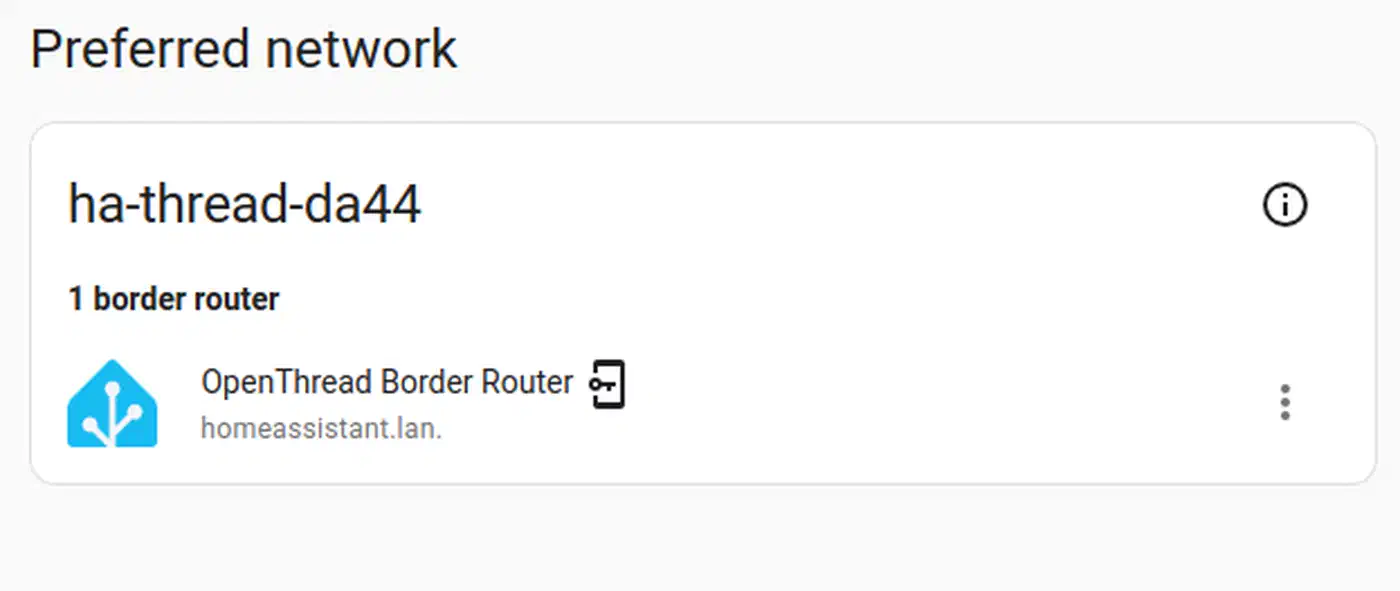

Navigate to Settings > Devices & Services > Thread in Home Assistant. It should auto-discover the OTBR and display the Thread network topology. If it does not appear, make sure the Home Assistant host can reach the Pi over mDNS (same subnet, no VLAN isolation blocking mDNS).

Optimizing Thread Mesh Coverage and Reliability

A Thread mesh is only as good as its topology. Getting coverage right means understanding device roles, placement strategy, and how to diagnose problems.

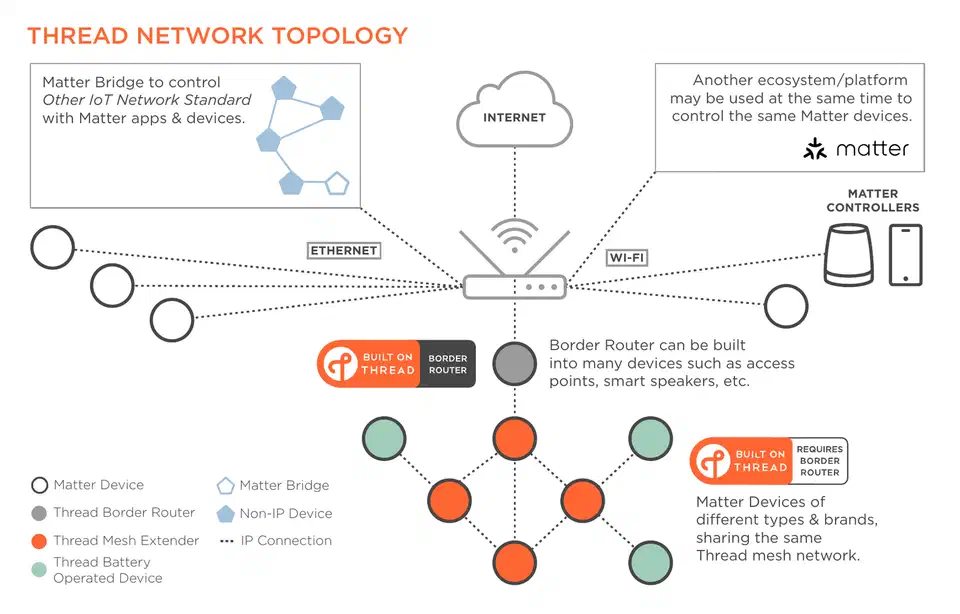

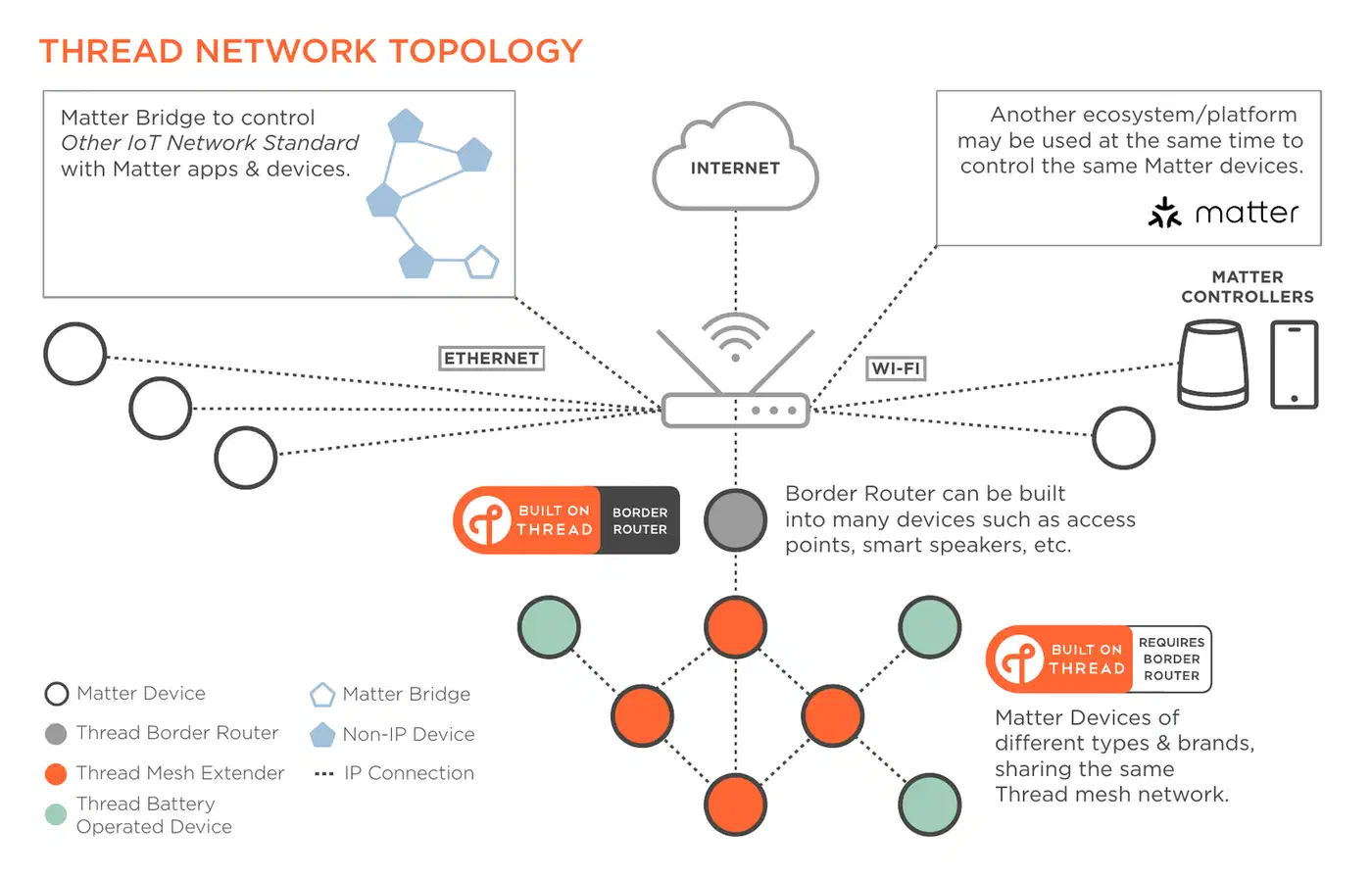

Device Roles

Thread assigns roles dynamically:

• Border routers and routers (mains-powered devices like smart plugs and bulbs) relay traffic for the entire mesh
• End devices (battery-powered sensors and locks) are leaf nodes that sleep most of the time and communicate only through their parent router

The more mains-powered Thread devices you have, the denser and more reliable your mesh becomes. Smart plugs and light bulbs running Thread firmware - like the Eve Energy or Nanoleaf Essentials bulbs - serve as routers automatically.

Placement Strategy

Position border routers centrally in your home, at least 5 meters apart. Two border routers on opposite ends of the house create overlapping coverage zones. For router density, aim for a mains-powered Thread device every 10-15 meters. In a typical 2000 sq ft house, 3-4 mains-powered Thread devices plus 2 border routers provide solid coverage.

Channel Selection

Thread operates in the 2.4 GHz band, same as WiFi. Thread channels 15, 20, and 25 have the least overlap with the three common WiFi channel configurations (1, 6, 11). Before forming your Thread network, run a WiFi analyzer app to identify the quietest part of the 2.4 GHz spectrum in your environment and pick a Thread channel accordingly.

Diagnostic Tools

Home Assistant’s Thread integration panel shows network topology, device roles, and link quality. For deeper diagnostics, the ot-ctl CLI provides detailed mesh information:

docker exec -it otbr ot-ctl router table    # list all routers and their link quality
docker exec -it otbr ot-ctl child table      # list all end devices and their parent routers
docker exec -it otbr ot-ctl networkdiagnostic get <address> <type>  # per-device diagnostics

Multi-Border-Router Failover

Thread’s Mesh Link Establishment (MLE) protocol automatically elects a leader and distributes routing responsibilities across all border routers. When one border router fails, the network reconverges within seconds using the surviving border routers. Silicon Labs benchmarking shows Thread handles failover significantly faster than Zigbee coordinator recovery, since Thread has no single coordinator dependency.

Commissioning Matter Devices onto Your Thread Network

With the Thread mesh running, you can start adding Matter-over-Thread devices. The process varies slightly depending on whether you commission through Home Assistant, Apple Home, or Google Home.

Basic Commissioning

Every Matter device has a QR code or an 11-digit setup code printed on it (or included in the packaging). The commissioner scans this code and then provisions Thread credentials and Matter fabric keys to the device. In Home Assistant, go to Settings > Devices & Services > Add Integration > Matter, then scan the QR code using the Companion app’s camera or enter the code manually.

Multi-Admin (Multi-Fabric) Setup

Multi-admin is the reason Matter is worth the migration hassle. After commissioning a device in Home Assistant, open the device’s Matter settings and select “Share device” to generate a new commissioning window. Scan the resulting code with Apple Home or Google Home to add the device to a second ecosystem.

Matter 1.4 supports up to 5 simultaneous fabrics per device, meaning one Thread light bulb can be controlled by Home Assistant, Apple Home, Google Home, Samsung SmartThings, and Amazon Alexa all at the same time. Each ecosystem gets its own secure fabric with independent encryption keys.

Thread Credential Sharing Across Ecosystems

If you are using an Apple HomePod and a Google Nest border router, enabling “Share Thread network” in both ecosystems lets them use the same Thread network. Devices commissioned from either ecosystem join one unified mesh rather than creating separate networks. This is the Thread 1.4 credential sharing feature in action, and it eliminates the fragmentation problem that plagued early Thread deployments.

Tested Matter-over-Thread Devices

As of early 2026, over 1,100 Matter-certified devices exist. Here are some well-tested options across categories:

Eve went all-in on Thread early and their entire product line is Thread-native with no bridge required. Nanoleaf’s Essentials line is also fully Thread-native. Aqara has been expanding their Matter-over-Thread lineup, though some older Aqara sensors still use Zigbee and need the Aqara M3 hub as a Matter bridge.

Troubleshooting Failed Commissioning

Most commissioning failures come down to network configuration, not device problems:

• The border router and the commissioner must be on the same VLAN/subnet with mDNS traffic (port 5353 UDP) allowed between them. Many managed switches and enterprise access points block mDNS by default, and this is the number one cause of failed commissioning.
• Matter over Thread requires IPv6. Check that IPv6 is enabled on your router and that no firewall rules are dropping IPv6 traffic on the LAN.
• If you have border routers from multiple ecosystems running separate Thread networks, devices might join the wrong one. Thread 1.4 credential sharing helps, but you may still need to verify all border routers are on the same network.
• During initial commissioning, keep the device within a few meters of a border router. Once commissioned and joined to the mesh, you can move it to its final location.

What Happens When All Border Routers Go Down

If every border router in your Thread network loses power or connectivity, the Thread mesh itself stays alive between router-capable devices (plugs and bulbs can still talk to each other over 802.15.4), but nothing can reach your IP network. No app control, no automations, nothing that depends on the Home Assistant or cloud connection works.

To recover, power on one border router at a time, waiting 1-2 minutes between each. Thread’s MLE protocol will re-elect a leader and rebuild the routing tables. The full mesh may take up to an hour to fully stabilize in large networks, so avoid restarting things repeatedly during recovery - that only prolongs the process.

This is why you want at least two border routers on separate power sources. Plug one into a UPS if you can. The cost of a second border router is trivial compared to the frustration of a dead smart home during a power blip.

Running Thread and Zigbee on the Same 2.4 GHz Band

If you are migrating from Zigbee or running both protocols in parallel, you need to plan channels carefully. Both Thread and Zigbee use IEEE 802.15.4 at 2.4 GHz, so they share the same radio spectrum. If both networks are on the same or overlapping channels, they will interfere with each other.

The fix is channel separation. Set your Zigbee network and Thread network on non-overlapping 802.15.4 channels. For example, if your Zigbee coordinator is on channel 15, put your Thread network on channel 25. The 802.15.4 spectrum has 16 channels (11-26), so there is room for both protocols to coexist cleanly.

Check your Zigbee coordinator’s current channel (in Home Assistant, go to Settings > Devices & Services > ZHA or Zigbee2MQTT and look at the network settings), then pick a Thread channel at least 5 channels away. This gives enough spectral separation to avoid cross-protocol interference.
