How to Set Up Dual-Boot Linux and Windows with Shared Storage

Install Windows first, then install Linux using systemd-boot as the bootloader on a shared EFI System Partition, with a dedicated exFAT partition for cross-OS file sharing. This avoids the notorious problem of Windows Update overwriting GRUB , since systemd-boot entries live alongside Windows Boot Manager in the ESP without conflicting. exFAT is natively supported by both operating systems with full read-write access and no filesystem corruption risks.

This guide covers the full process: partition strategy, installation order, bootloader setup, shared storage configuration, and what to do when Windows decides your boot order is wrong.

Pre-Installation: Partitioning Strategy and Disk Layout

Getting the partition layout right before installing anything is the single most important step. A bad partition scheme leads to data loss, boot failures, and hours of frustration. Plan everything before you touch an installer.

Use GPT, Not MBR

Every machine from the last decade uses UEFI firmware, so your disk must use a GPT (GUID Partition Table). MBR-based legacy BIOS dual-boot is obsolete and not covered here. If you are buying or building a new machine in 2026, you already have UEFI - no exceptions.

Recommended Partition Layout

For a single 1TB NVMe drive, here is a proven layout:

If you have two separate drives (recommended for reliability), put Windows on Drive 1 with its own ESP, Linux on Drive 2 with its own ESP, and the exFAT shared partition on whichever drive has more free space. Two separate drives eliminates any chance of one OS accidentally damaging the other’s boot partition.

Creating the Partitions

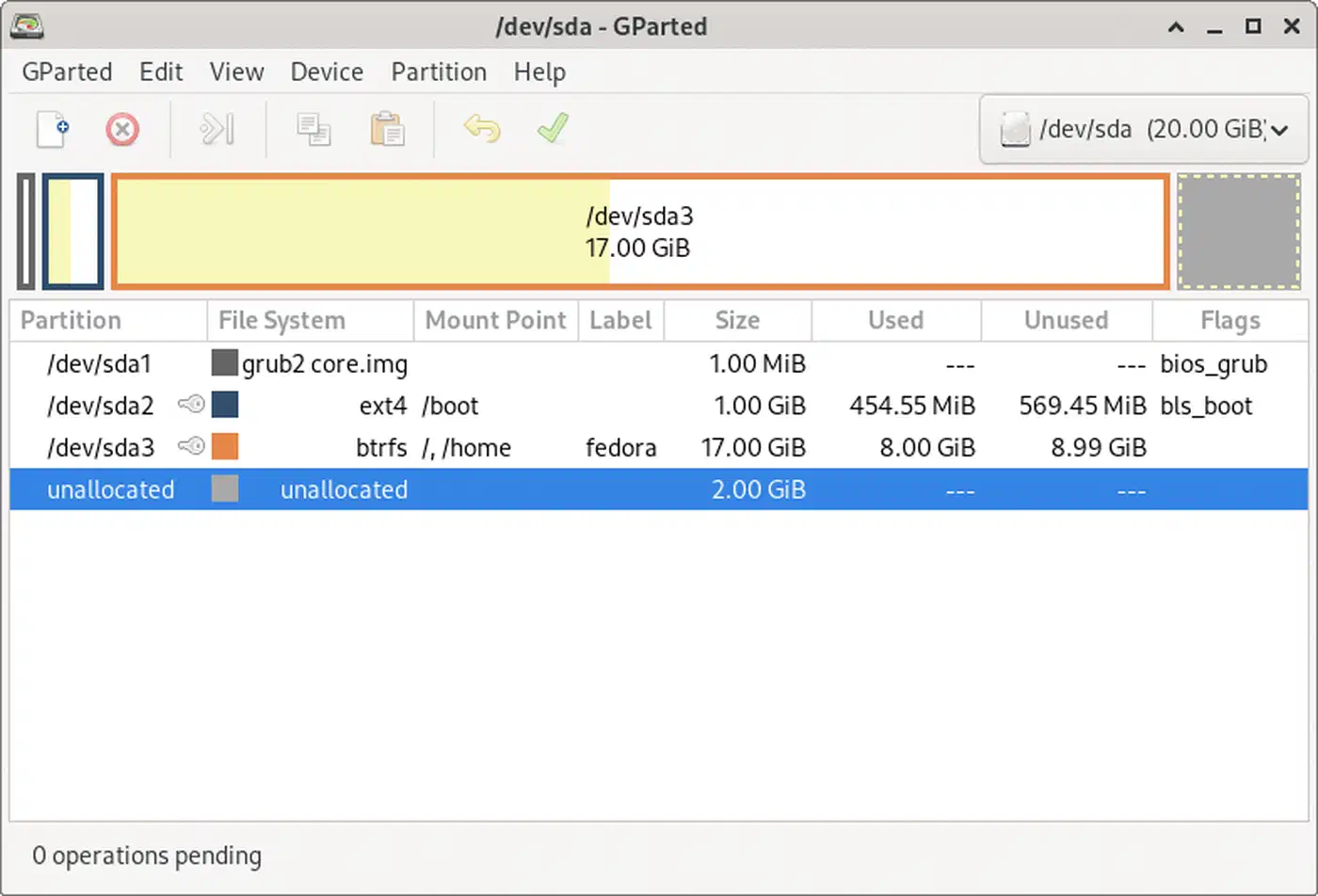

Create the exFAT partition using GParted from a Linux live USB or Windows Disk Management. Format as exFAT with a 1 MB allocation unit size for optimal performance with large files like video, game saves, and project directories. Smaller allocation units waste throughput on large files; larger ones waste space on small files. 1 MB is a solid middle ground for mixed workloads.

Disable Windows Fast Startup

Fast Startup has been enabled by default since Windows 8. It puts NTFS into a hibernated state on shutdown. If Linux tries to mount a hibernated NTFS volume for read-write access, it will either refuse or corrupt the hibernation image, preventing Windows from resuming properly.

Disable it before installing Linux:

1. Open Control Panel > Power Options > Choose what the power buttons do
2. Click Change settings that are currently unavailable
3. Uncheck Turn on fast startup
4. Save changes

Without this step, you will run into “Windows is hibernated, refused to mount” errors every time you try to access NTFS partitions from Linux.

Secure Boot and BitLocker Warnings

Disable Secure Boot temporarily during Linux installation if your distro’s installer does not auto-enroll MOK (Machine Owner Key) keys. You can re-enable it after installation and enroll the distro’s shim/MOK key using mokutil --import.

A critical warning for Windows 11 24H2 and later: fresh installations now automatically enable BitLocker encryption when you sign in with a Microsoft Account during setup. This applies even to Windows 11 Home editions. If BitLocker is enabled, changing the boot order or modifying the ESP can trigger BitLocker recovery mode, locking you out of Windows until you enter a 48-digit recovery key.

Before making any changes to the ESP or boot configuration:

• Check if BitLocker is active: open a PowerShell window and run manage-bde -status
• Save your recovery key from account.microsoft.com/devices/recoverykey
• If you have not set up a Microsoft Account, export the key with manage-bde -protectors -get C:

Installing Windows First, Then Linux with systemd-boot

Installation order matters. Windows always assumes it owns the bootloader and will overwrite anything that is not its own during updates. By installing Windows first and Linux second with systemd-boot, you get a boot manager that coexists peacefully with Windows Boot Manager on the shared ESP.

Step 1: Install Windows 11

Install Windows 11 (24H2 or later) using a standard USB installer. Let it create its own EFI partition, or use the pre-created one from your partitioning step. Complete the setup, run Windows Update fully until no more updates are pending, then shut down completely (not restart, not sleep - a full shutdown with Fast Startup already disabled).

Step 2: Boot the Linux Installer

Boot from a Linux USB installer. Three distros work particularly well with systemd-boot:

• Fedora 42+: Supports systemd-boot as a bootloader option during installation. Add inst.sdboot to the kernel command line in the installer to select it. Fedora 42 still defaults to GRUB for most installations, but the systemd-boot path is well-tested.
• Ubuntu 24.10+: Requires selecting systemd-boot during the advanced installer, or running bootctl install after installation.
• Arch Linux : Run bootctl install during the chroot step. Arch’s wiki has the most thorough documentation for this.

Step 3: Mount the Existing ESP

During Linux installation, mount the existing EFI System Partition at /boot/efi (or /efi on Arch). Do not format it - just mount it. This places Linux boot entries alongside Windows entries on the same ESP, which is exactly what you want.

Step 4: Configure systemd-boot

systemd-boot stores boot entries as plain-text .conf files in /boot/efi/loader/entries/, making them trivial to edit. A typical entry looks like:

title   Fedora Linux
linux   /vmlinuz-linux
initrd  /initramfs-linux.img
options root=UUID=xxxx-xxxx rw quiet

Windows Boot Manager lives at /boot/efi/EFI/Microsoft/Boot/bootmgfw.efi and is auto-detected by systemd-boot. You do not need to create a manual entry for it.

After installation, set the default boot entry:

bootctl set-default fedora.conf

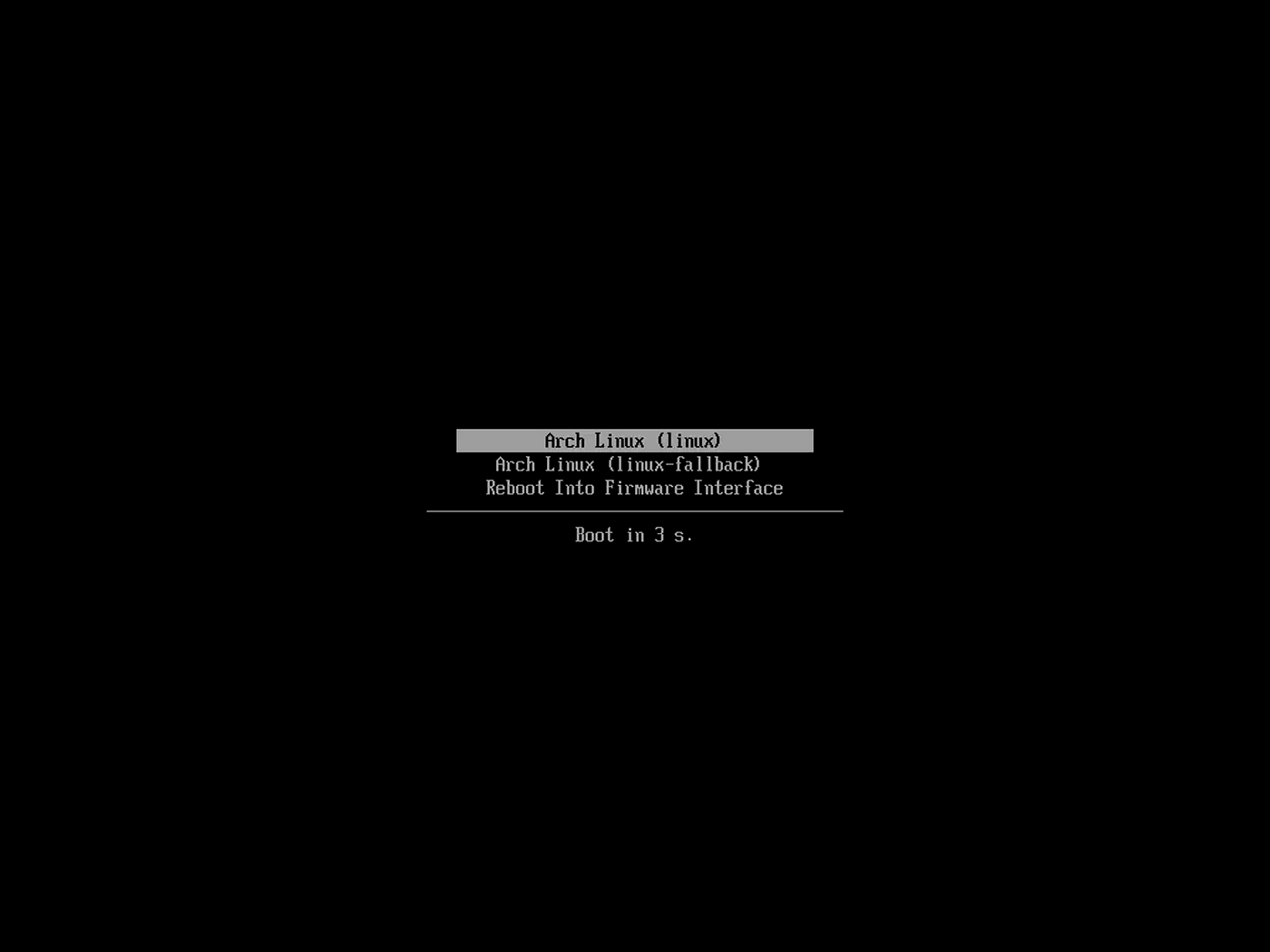

Or use the timeout menu by pressing Space during boot to select an OS manually.

Why systemd-boot Instead of GRUB

The core advantage is conflict avoidance. GRUB installs to the ESP in a way that directly conflicts with Windows Boot Manager, and Windows Update routinely overwrites it. systemd-boot places its entries in a separate loader/ directory that Windows never touches.

systemd-boot is also faster than GRUB. It loads fewer modules and relies directly on UEFI services rather than its own driver stack. On a modern NVMe drive , the difference is roughly 1-2 seconds - small, but you feel it on every boot.

The trade-off is flexibility. GRUB supports legacy BIOS, custom themes, and complex boot configurations. systemd-boot is UEFI-only with a minimalist text menu. For a straightforward dual-boot setup, systemd-boot’s simplicity is a feature, not a limitation.

Setting Up the Shared exFAT Storage Partition

A shared data partition accessible from both operating systems eliminates the constant need to copy files between installs. exFAT is the best filesystem for this in 2026 because it is natively supported by both Windows and Linux (kernel 5.7+, via the in-kernel exfat module) without third-party drivers, supports files larger than 4 GB, and has no journaling overhead.

Linux Configuration

Verify exFAT support is loaded:

modprobe exfat
dmesg | tail -5

If there are no errors, you are good. Every major distro shipping a kernel 5.7 or later (which is all of them in 2026) includes this module by default. You do not need the old exfat-fuse or exfat-utils packages anymore.

Add an auto-mount entry to /etc/fstab:

UUID=XXXX-XXXX  /mnt/shared  exfat  defaults,uid=1000,gid=1000,umask=022  0  0

Replace XXXX-XXXX with the actual UUID from blkid. The uid and gid parameters set your user as the owner, since exFAT does not support Linux file permissions natively.

Windows Configuration

The exFAT partition appears automatically in File Explorer. Assign a persistent drive letter (like D:) via Disk Management to prevent Windows from shuffling letters after updates. Right-click the partition, select Change Drive Letter and Paths, and assign one.

Symlink Strategy

Create symlinks from your home directories to the shared partition so both operating systems use the same files:

Linux:

ln -s /mnt/shared/Documents ~/Documents
ln -s /mnt/shared/Projects ~/Projects
ln -s /mnt/shared/Downloads ~/Downloads

Windows (run as Administrator):

mklink /D C:\Users\YourName\Documents D:\Documents
mklink /D C:\Users\YourName\Projects D:\Projects
mklink /D C:\Users\YourName\Downloads D:\Downloads

This way, saving a file to “Documents” in either OS puts it on the shared partition.

Accessing Windows NTFS Partitions from Linux

If you need to access files on the Windows NTFS system partition (not just the shared exFAT partition), Linux has the ntfs3 kernel driver built-in since kernel 5.15. This is a full read-write NTFS driver developed by Paragon Software and merged into the mainline kernel.

Mount an NTFS partition with:

mount -t ntfs3 /dev/nvme0n1p2 /mnt/windows

This is useful for accessing Windows-only files or application data, but keep in mind that Fast Startup must be disabled (as covered earlier) or the partition will mount read-only.

exFAT Limitations

exFAT does not support Linux file permissions, symlinks, or POSIX attributes. Everything on the exFAT partition is owned by whatever uid/gid you set in fstab. This means:

• Do not use it for git repositories that rely on executable bit tracking - keep those on ext4 and sync changes via the shared partition
• File timestamps may have slight differences between operating systems
• No hard links or special files

For development work, keep your repos on the native filesystem (ext4 on Linux , NTFS on Windows) and use the shared partition for documents, media, and other data files.

Surviving Windows Updates Without Breaking Your Bootloader

The most common dual-boot failure is Windows Update overwriting or corrupting the Linux bootloader. Here is why systemd-boot handles this better than GRUB, and what to do when Windows still manages to break things.

Why systemd-boot Is Resilient

Windows Update primarily overwrites the default EFI boot entry at \EFI\Boot\bootx64.efi. systemd-boot installs itself there, but also registers a separate named EFI entry via efibootmgr. Even if the fallback file is overwritten, the named entry survives.

Windows Update only touches its own EFI/Microsoft/ directory and the default fallback path. systemd-boot’s configuration lives in loader/ and its own EFI/systemd/ directory, which Windows has no reason to touch. If you notice your Linux boot feels slower than expected after a Windows Update, systemd-analyze can pinpoint which services are adding latency to the startup chain.

After a Major Windows Update

After a major Windows feature update (for example, 24H2 to 25H2), check the boot order:

efibootmgr -v

If the Linux entry has been pushed down the priority list, restore it:

efibootmgr -o 0001,0000

Replace the numbers with the actual entry IDs from the output of efibootmgr -v. The first number becomes the default.

Recovery Procedure

If systemd-boot is completely gone after a particularly aggressive Windows Update, recovery takes about 30 seconds:

1. Boot from a Linux live USB
2. Mount the ESP: mount /dev/nvme0n1p1 /mnt/efi
3. Mount your Linux root: mount /dev/nvme0n1p3 /mnt/linux
4. Chroot in: arch-chroot /mnt/linux (or equivalent for your distro)
5. Reinstall systemd-boot: bootctl install
6. Reboot

Compare this to GRUB recovery, which often involves grub-install, grub-mkconfig, debugging configuration files, and sometimes reinstalling from scratch.

Manual Fallback

Enable the UEFI firmware’s built-in boot menu (usually F12 or F9 at POST) as a manual fallback. This menu always shows all EFI boot entries regardless of what any OS has done to the default boot order. Even if both systemd-boot and Windows Boot Manager are fighting over the default, you can always manually select which to boot from the firmware menu.

Fixing the Dual-Boot Time Zone Conflict

When dual-booting, you will inevitably notice the clock is wrong in one OS after booting from the other. This happens because Linux assumes the hardware clock (RTC) stores UTC time, while Windows assumes it stores local time. Each OS “corrects” the clock based on its own assumption, creating a mismatch.

There are two fixes. Pick one:

Option A - Tell Linux to use local time (easier, slightly less correct):

timedatectl set-local-rtc 1 --adjust-system-clock

This tells Linux to treat the hardware clock as local time, matching Windows’ assumption. The downside: timedatectl will warn you that this mode is not fully supported, and daylight saving time transitions may be handled less gracefully.

Option B - Tell Windows to use UTC (cleaner, recommended):

Open Registry Editor and navigate to:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation

Create a new DWORD (32-bit) value named RealTimeIsUniversal and set it to 1. This tells Windows to treat the RTC as UTC, matching Linux’s default behavior. This is the cleaner solution because UTC is the correct standard for hardware clocks, but some Windows applications that directly read the RTC (rare) may display incorrect times.

After applying either fix, restart both operating systems to confirm the clocks are synchronized.

Quick Reference: Complete Installation Checklist

The full process condensed:

• Back up all important data before starting
• Disable Windows Fast Startup
• Check if BitLocker is active; save recovery key if so
• Create partition layout (ESP, Windows, Linux, swap, exFAT)
• Install Windows 11, run all updates, full shutdown
• Boot Linux installer, mount existing ESP (do not format)
• Install Linux with systemd-boot as bootloader
• Set default boot entry with bootctl set-default
• Configure exFAT auto-mount in /etc/fstab
• Assign persistent drive letter to exFAT partition in Windows
• Set up symlinks in both operating systems
• Fix time zone conflict (Option A or B)
• Enable UEFI firmware boot menu (F12/F9) as fallback
• Test booting into both operating systems
• Verify shared partition is accessible from both sides

This setup has been stable through multiple Windows feature updates on several machines. systemd-boot and exFAT together give you a dual-boot environment that needs almost no ongoing maintenance - configure it once and leave it alone.
